« Timber Products Designs » Shelter Sheds (Traditional designs)

Design Aids for Park Infrastructure and Landscaping
Contains dynamic blocks for Autocad 2006 and later

For your convenience we are providing our landscaping products as .dwg files containing dynamic blocks. You will require at Autocad version 2006 or later to be able to ulitilse these dynamic blocks.

When ordering you will need to specify the model number and roof colour from the 'Colour Bond' range.

Gregory Shelter Range (Gable roof) Updated PDF pending

Product Range & Models	Typical PDF	CAD File
Gregory Shelter 4m x 4m Models: (See Post Options detailed) GS4X4HIG GS4X4HSS GS4X4ST GS4X4AC GS4X4ACT	n/a	AutoCAD file
Gregory Shelter 6m x 4m Models: GS6X4HIG GS6X4HSS GS6X4ST GS6X4AC GS6X4ACT	n/a	AutoCAD file
Gregory Shelter 10m x 4m GS10X4HIG GS10X4HSS GS10X4ST GS10X4AC GS10X4ACT	n/a	AutoCAD file

Lindsay Shelter Range (Lean-to roof) Updated PDF pending

Product Range & Models	Typical PDF	CAD File

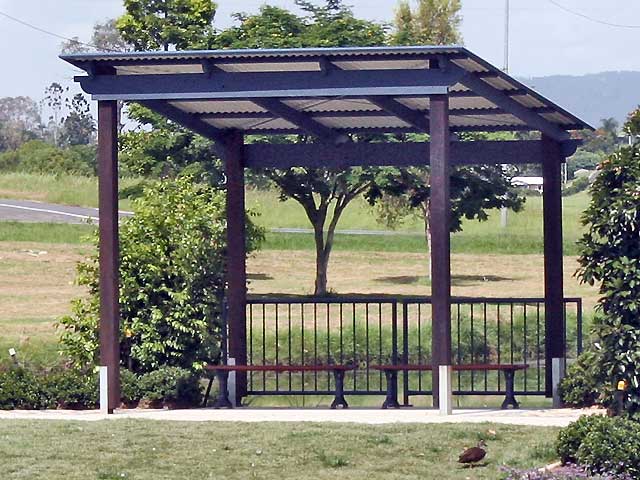

Lindsay Shelter 5m x 6m Models: (See Post Options detailed) LS5X6HIG LS5X6HSS LS5X6ST	n/a	AutoCAD file

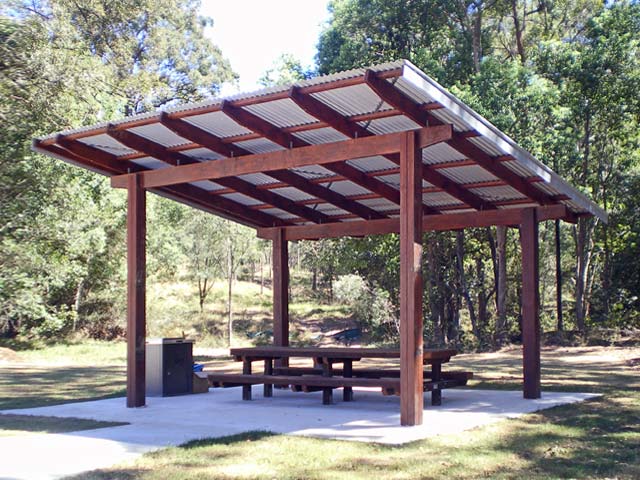

Lindsay Shelter 6m x 6m Models: LS6X6HIG LS6X6HSS LS6X6ST	n/a	AutoCAD file

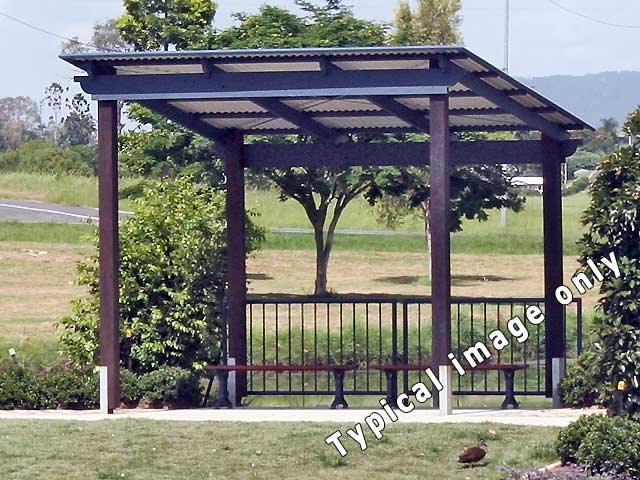

Lindsay Shelter 10m x 6m LS10X6HIG LS10X6HSS LS10X6ST	n/a	AutoCAD file
Lindsay Shelter Triple 11.6m x 6m LS116X6HIG LS116X6HSS LS116X6ST	n/a	n/a

Hume Shelter Range (Hip roof) Updated PDF pending

Product Range & Models	Typical PDF	CAD File
Hume Shelter 4m x 4m Models: (See Post Options detailed) HS4X4HIG HS4X4HSS HS4X4ST HS4X4AC HS4X4ACT	n/a	AutoCAD file
Hume Shelter 6.4m x 4m Models: HS6X4HIG HS6X4HSS HS6X4ST HS6X4AC HS6X4ACT	n/a	AutoCAD file
Hume Shelter 10m x 4m HS10X4HIG HS10X4HSS HS10X4ST HS10X4AC HS10X4ACT	n/a	AutoCAD file

Mitchell Shelter (6-sided)

Product Range & Models	Image	Typical PDF	CAD File
Hume Shelter 6m x 4m Models: More details to be announced.		n/a	n/a

Shelter Post Options:

The following post options are available for all sizes on all ranges of OSA Shelters.

HIG: Hardwood (pioneer) Post In-ground
HSS: Hardwood (pioneer) Post In Steel Support
ST: Steel Legs
AC: Architectural Column - Straight
ACT: AC: Architectural Column - Tapered.

Notes:
Each product is presented as an 'illustrative' photo (where available), a 'typical' PDF for on-screen viewing or printing and a .DWG Autocad drawing. The PDF may show only one model while the DWG files normally includes all models within a product series.

All designs, illustrations, images and documentation are ©Copyright OSA (except as indicated) and may not be reproduced without written permission. This information is presented 'as is' for the use of suitably qualified design professionals. OSA does not give any warranty as to the suitability of these products, designs or applications. OSA reserves the right to change, alter or improve any product represented in these designs, illustrations, images or documentation without notice.
